Product Dimensions 11.50"h x 35.88"w x 22"d

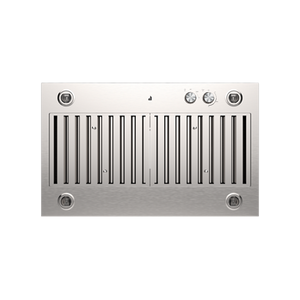

This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.Read More
JennAir Luxury Redefined Promotion
Save up to $2,500 on qualifying appliances Ends 2025-05-31
Shop eligible itemsThree-speed blower – ordered separately – rapidly rids the air of smoke, steam and cooking odors so the air is fresh and clean.
Large-diameter venting that enables quiet airflow and effective performance.
This hidden ventilation system mounts to the inside of a custom-built vent covering that can blend into the kitchen's design or be highlighted as a visual feature of the kitchen.
Two different settings give you the appropriate level of lighting as you cook.
Automatically turns the ventilation system on and adjusts power as needed.
Knob controls provide precise adjustment and easy selection of ventilation speeds.
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Quickly removes smoke, steam and cooking odors from the kitchen and mounts further down the duct run to help reduce the noise of the ventilation system in the kitchen.
These stainless steel baffle filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.
Blur the lines of temptation with mind-bending curves and hairpin corners of stainless steel that will leave you reeling.
General Specs | |
| Width (in.) | 35.88 |
| Height (in.) | 11.50 |
| Duct Size (in.) | 10 |
| Depth (in.) | 22 |
| Appliance Fit Width (cm.) | 91 |
| Range Hood Type | Insert |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Maximum CFM | 1200 |
| Width (cm) | 91.14 |
| Height (cm.) | 29.21 |
| Depth (cm.) | 55.88 |
| Amp | 15 |
| Ventilation Type | Ducted |
Specs | |
| Number of Task Light Settings | 1 |
| Task Lighting | Yes |
| Filters | Dishwasher-Safe Grease Filters |
| Number of Speeds | 3 |
| Design Expression | Stainless Steel |
| Hood Type | Custom Hood Liners |
| Number of Night Light Settings | 1 |
| Task Light Type | Halogen |
| Night Light | Yes |
| Duct Type | Round |
| Power Cord Included | Yes |
